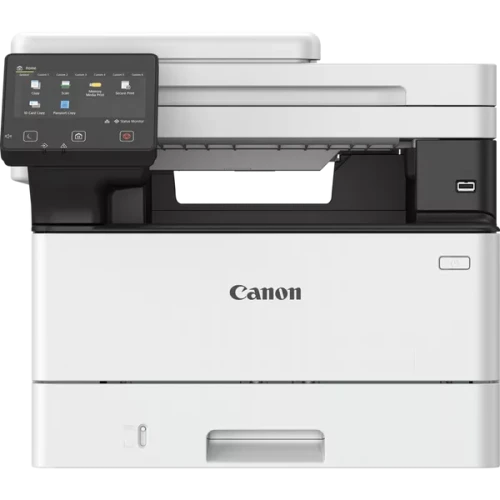

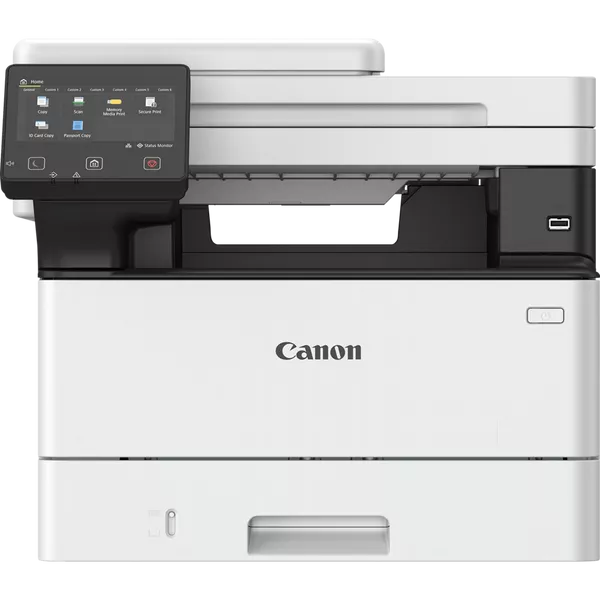

5951C008 - Canon i-SENSYS MF463dw MFP

General Specifications

• Machine Type

  Mono Laser All-In-One

• Available Functions

  Print, Copy and Scan

Print Specifications

• Print Speed

  Single sided : Up to 40 ppm (A4); Up to 65.4 ppm(A5-Landscape)
  Double sided : Up to 33.6 ipm (A4)

• Printing Method

  Monochrome laser beam printing

• Print Resolution

  Up to 1200 x 1200 dpi

• Warm-up Time

  Approx. 14 seconds or less from power on

• First-Print-Out Time

  Approx: 5.0 seconds or less

• Printer Languages

  UFRII, PCL 5e, PCL6, Adobe® PostScript3

• Fonts

  45 PCL fonts
  136 PostScript fonts

• Print Margins

  5 mm-top, bottom, left and right
  10 mm-top, bottom, left and right (Envelope)

• Toner Saver Mode

  Yes

• Advanced Printing Features

  Encrypted Secure Print
  Secure Print
  Print from USB memory key (JPEG/TIFF/PDF)
  Print from Cloud (Dropbox, GoogleDrive, OneDrive) (PDF/JPEG)
  Microsoft Universal Print
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon PRINT Business app, Canon Print Service Plug-in

Copy Specifications

• Copy Speed

  Single sided (A4): Up to 40 ppm
  Double sided (A4): Up to 33.6 ipm

• First-Copy-Out Time

  Approx. 6.1 seconds or less

• Copy Resolution

  Up to 600 x 600 dpi

• Copy Modes

  Text, Text/Photo (Default), Text/Photo (High Quality), Photo

• Double Sided Copying

  2-sided to 2-sided (Automatic)

• Multiple Copies

  Up to 999 copies

• Reduction / Enlargement

  25-400% in 1% increments

• Other Features

  Frame Erase, Collate, 2 on 1, 4 on 1, ID card copy

Scan Specifications

• Standard Type

  Colour

• Scan Resolution

  Optical: Up to 600 x 600 dpi
  Enhanced: Up to 9600 x 9600 dpi

• Scan Speed

  Single sided mono: 50ipm (300x300dpi)
  Single sided colour: 40ipm (300x300dpi)
  Double sided mono: 100ipm (300x300dpi)
  Double sided colour: 80ipm (300x300dpi)
  Single sided mono: 40ipm (300x600dpi)
  Single sided colour: 20ipm (300x600dpi)
  Double sided mono: 80ipm (300x600dpi)
  Double sided colour: 40ipm (300x600dpi)

• Colour Scanning Depth

  24 bit/24 bit (input/output)

• Greyscales

  256 levels

• Compatibility

  TWAIN , WIA, ICA

• Maximum Scan Width

  216mm

• Scan to E-mail

  TIFF/JPEG/PDF/Compact PDF/Searchable PDF

• Scan to PC

  TIFF/JPEG/PDF/Compact PDF/Searchable PDF

• Scan to USB Memory Key

  TIFF/JPEG/PDF/Compact PDF/Searchable PDF

• Scan to FTP

  TIFF/JPEG/PDF/Compact PDF/Searchable PDF

• Scan to Cloud

  TIFF/JPEG/PDF/PNG

• iFAX

  ITU-T.37

Media Handling

• Scanner Type

  Platen, 2-sided ADF (single pass)

• Paper Input (Standard)

  250-sheet cassette
  100-sheet multi-purpose tray
  50-sheet ADF

• Paper Input (Option)

  550-sheet cassette

• Maximum Paper Input Capacity

  900 sheets

• Paper Output

  150-sheet

• Media Types

  Plain paper, Recycled paper, Heavy Paper, Thin paper, Label, Post card, Envelope

• Media Sizes

  Cassette (Standard and optional):
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Custom sizes: Min. 105 x 148 mm Max. 216.0 x 355.6 mm.

  Multi-purpose tray:
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Indexcard, Envelope (COM10, Monarch, C5, DL), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.

  ADF:
  A4, A5, A6, B5, Legal, Letter, Statement, Custom sizes: Min. 48 x 85.0 mm Max 216 x 355.6 mm

• Media Weights

  Cassette (standard and optional): 60 to 120 g/m²
  Multi-purpose tray: 60 to 199 g/m²
  ADF: 60 to 120 g/m²

• Double Sided Printing

  A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
  Custom size - Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm
  60 to 120 g/m²

Interface & Software

• Interface Type

  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection

• Operating System Compatibility

  Windows® 11 / Windows® 10 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
  Mac OS X version 10.13 & up
  Linux

• Network Protocol

  Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
  Scan:
  Push Scan: File: FTP (TCP/IP), SMB3.0 (TCP/IP)
  E-mail/I-Fax: SMTP (send), POP3 (receive)
  Pull Scan: TCP/IP

  Management:
  SNMPv1, SNMPv3 (IPv4,IPv6)

  Security:
  TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless):
  Infrastructure Mode:
  WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA-EAP(AES), WPA2-EAP(AES)
  Access Point Mode:
  WPA2-PSK(AES)

• Software and Printer Management

  MF Scan Utility,
  Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics
  Application Library

General Features

• Recommended Monthly Print Volume

  750 - 4,000 pages per month

• Duty Cycle

  Max. 80,000 pages per month

• Processor Speed

  1200MHz

• Memory

  1GB

• Storage

  4GB eMMC

• Control Panel

  12.7 cm LCD Colour Touch Screen

• Dimensions with Trays (W x D x H)

  420 mm x 460 mm x 375 mm

• Installation Space (W x D x H)

  689 mm x 1,081 mm x 824 mm

• Weight

  Approx. 16.3 Kg

• Operating Environment

  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity: 20 to 80% RH (no condensation)

• Power Source

  220-240V(±10%) 50/60Hz (±2Hz)

• Power Consumption

  Maximum: Approx. 1,280 W
  Active printing: Approx. 480W
  Standby: Approx. 8 W
  Sleep mode: Approx. 0.9 W
  Typical Electricity Consumption (TEC): 0.32 kWh/week (230V)

• Noise Levels

  Sound Pressure:
  Active: 53dB
  Standby: Inaudible

  Sound Power:
  Active: Duplex 68dB / Simplex 67dB
  Standby: Inaudible

Consumables

• Cartridges

  Cartridge 070 (3,000 pages)
  Cartridge 070H (10,200 pages)

Accessories & Options

• Items

  CST.Feeding Module-AH1 (550-sheet cassette)
