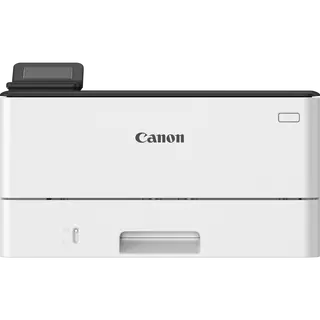

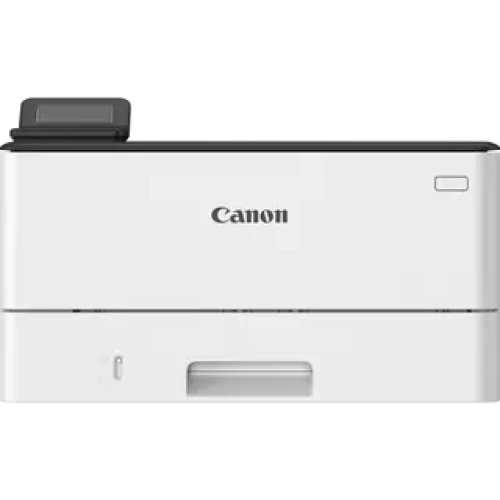

5952C006 - Canon i-SENSYS LBP246dw

Specifications in detail

General Specifications

• Machine Type
  Laser printer
• Available Functions
  Print

Print Specifications

• Print Speed
  Single sided: Up to 40 ppm (A4)
                      Up to 65.4 ppm (A5-Landscape)
  Double sided: Up to 33.6 ipm (A4)
• Printing Method
  Monochrome laser beam printing
• Print Resolution
  Up to 1200 x 1200 dpi
• Warm-up Time
  Approx. 14 seconds or less from power on
• First-Print-Out Time
  Approx: 5.0 seconds or less
• Printer Languages
  UFRII, PCL 5e, PCL6, Adobe® PostScript3
• Fonts
  45 PCL fonts, 136 PS fonts
• Print Margins
  5 mm-top, bottom, left and right
• Toner Saver Mode
  Encrypted Secure Print
  Secure Print
  Microsoft Universal Print support
  iOS: AirPrint, Canon PRINT Business app
  Android: Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
• Advanced Printing Features
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

Media Handling

• Paper Input (Standard)
  250-sheet cassette
  100-sheet multi-purpose tray
• Paper Input (Option)
  550-sheet cassette
• Maximum Paper Input Capacity
  Up to 900 sheet
• Paper Output
  150-sheet
• Media Types
  Plain paper, Recycled paper, Heavy Paper, Thin paper, Coated paper, Label, Post card, Envelope
• Media Sizes
  Cassette (Standard and optional):
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Custom sizes: Min. 105 x 148 mm Max. 216.0 x 355.6 mm.

  Multi-purpose tray:
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Indexcard, Envelope (COM10, Monarch, C5, DL), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.
• Media Weights
  Cassette (standard and optional): 60 to 120 g/m²
  Multi-purpose tray : 60 to 199 g/m²
• Double Sided Printing
  A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
  Custom size - Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm
  60 to 120 g/m2

Interface & Software

• Interface Type
  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  Windows® 11 / Windows® 10 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
  Mac OS X version 10.13 & up
  Linux
• Network Protocol
  Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/WSD)

  Management:
  SNMPv1, SNMPv3 (IPv4,IPv6)

  Security :
  TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless):
  Infrastructure Mode:
  WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA-EAP (AES), WPA2-EAP (AES)
  Access Point Mode:
  WPA2-PSK (AES)
• Software and Printer Management
  Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.

General Features

• Recommended Monthly Print Volume
  750 - 4,000 pages per month
• Duty Cycle
  80,000 pages
• Processor Speed
  1200MHz
• Memory
  1GB
• Storage
  4GB eMMC
• Control Panel
  5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad
• Dimensions with Trays (W x D x H)
  399 mm x 373 mm x 249 mm
• Weight
  Approx. 9.5 Kg
• Operating Environment
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity 20 to 80% RH (no condensation)
• Power Source
  220-240V (±10%)  50/60Hz (±2Hz)
• Power Consumption
  Maximum: Approx. 1,250 W
  Active printing: Approx. 480W
  Standby: Approx. 6 W
  Sleep mode: Approx. 0.9 W
  Typical Electricity Consumption (TEC): 0.29 kWh/week (230V)
• Noise Levels
  Sound Pressure  :
  Active: Simplex 54 dB or less
  Duplex 53 dB or less
  Standby: Inaudible

  Sound Power  :
  Active: 68 dB
  Standby: Inaudible

Consumables

• Cartridges
  Cartridge 070 (3,000 pages )
  Cartridge 070H (10,200 pages )

Accessories & Options

• Items
  Cassette Feeding Module-AH1
