TECHNICAL DETAILS
SUPPORTED OPERATING SYSTEMS
Compatible operating systems
Windows 11 21H2; Windows 11 22H2; Windows 10 21H2; Windows 10 22H2; macOS Monterey 12.4 or later; macOS Big Sur 11.6
SOFTWARE AND APPLICATIONS
Management functions
PXE boot; LAN boot function (WoL); MAC address forwarding (MAPT); LAN/WLAN switching; Connected mode firmware updates
CONNECTIVITY AND COMMUNICATIONS
I/O port location
Rear
Ports
1 SuperSpeed USB Type-C® port with 5 Gbps (USB power up to 15 W)
I/O port location
Front
Ports
2 SuperSpeed USB Type-A ports at 5 Gbps (with charging); 1 audio combo jack connector
I/O port location
Side
Ports

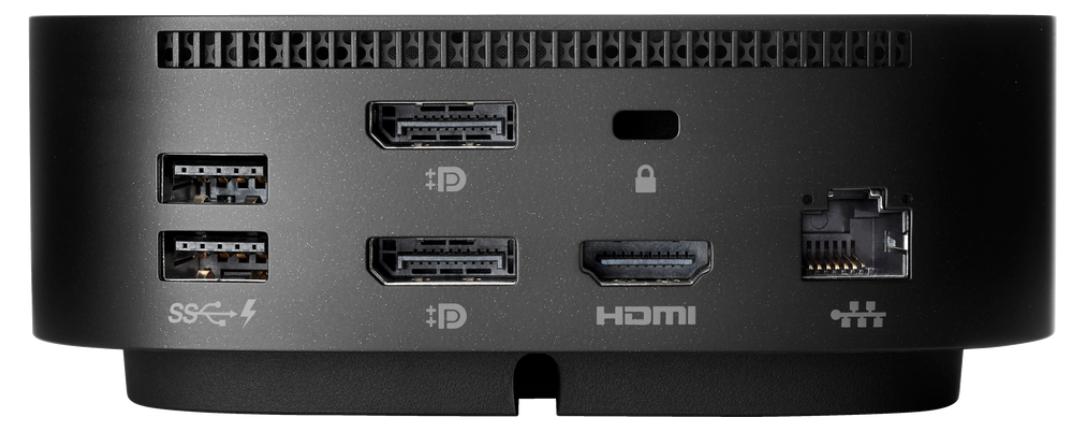

2 DisplayPort™ 1.4; 1 HDMI 2.0 port; 1 RJ-45 port; 2 SuperSpeed USB Type-A ports at 5 Gbps (with charging)
DIMENSIONS
Minimum dimensions (W x D x H).
122 × 122 × 45 mm
DISPLAY PARAMETERS
Support for monitors
For hosts that support the DisplayPort™ 1.4 standard with Display Stream Compression: 3 × FHD, 60 Hz; 3 × QHD, 60 Hz; 3 × 4K UHD, 60 Hz; For hosts supporting DisplayPort™ 1.3/1.4 standard: 3 × FHD, 60 Hz; 3 × QHD, 60 Hz; 2 × 4K UHD, 60 Hz; For hosts supporting the DisplayPort™ 1.2 standard: 3 × FHD, 60 Hz; 2 × QHD, 60 Hz; 1 × 4K UHD, 60 Hz [8].
SYSTEM COMPONENTS
Housing
Compact docking station
MULTIMEDIA DEVICES AND INPUT DEVICES
Connection type
1 USB-C® cable on the front for connection to the host system (USB power supply up to 65 W)
Cable length
1 m
Power supply socket
1 × 4.5 mm
Power button type
Mechanical power button with LED light to power on or wake up the host system
Weight
0.68 kg
BATTERY AND POWER SUPPLY
Power supply
120 W power supply
Power supply (PD) profiles
12 V / 5 A; 5 V / 3 A; 9 V / 3 A; 15 V / 4.33 A / 20 V / 3.25 A
Host power supply
Up to 65 W via USB Type-C® (HP and third-party host devices)
SYSTEM REQUIREMENTS
Minimum system requirements
USB Type-C®️ (USB power, Alt Mode DisplayPort™)
SECURITY MANAGEMENT
Physical security
1 standard Kensington lock slot
DESIGN
Color
Black
Product material
Plastic
Package contents
HP USB-C G5 Essential docking station; 120W AC adapter; Power cord; Quick installation sheet; Warranty card
