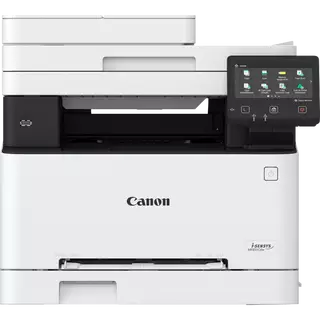

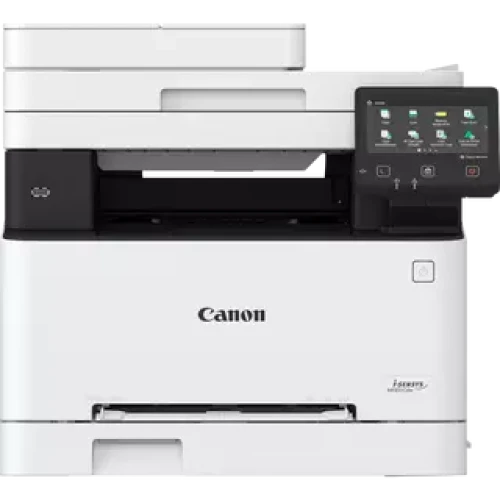

5158C004 - Canon MFP i-Sensys MF655Cdw

Specifications in detail

General Specifications

• Machine Type
  Colour Laser All-In-One
• Available Functions
  Print, Copy and Scan

Print Specifications

• Print Speed
  Single sided: Up to 21 ppm (A4)
  Up to 38 ppm(A5-Landscape)
  Double sided: Up to 12.7 ipm (A4)
• Printing Method
  Colour laser beam printing
• Print Resolution
  Up to 1200 x 1200 dpi
• Warm-up Time
  Approx. 13 seconds or less from power on
• First-Print-Out Time
  Colour approx.: 10.5 seconds or less
  Mono approx.: 10.4 seconds or less
• Printer Languages
  UFRII, PCL 5c2, PCL6
• Fonts
  45 PCL fonts
• Print Margins
  5 mm-top, bottom, left and right
  10 mm-top, bottom, left and right (Envelope)
• Toner Saver Mode
  Yes
• Advanced Printing Features
  Secure Print
  Print from USB memory key (JPEG/TIFF/PDF)
  Print from Cloud (Dropbox, GoogleDrive, OneDrive) (PDF/JPEG)
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

Copy Specifications

• Copy Speed
  Single sided (A4): Up to 21 ppm
  Double sided (A4): Up to 12.7 ppm
• First-Copy-Out Time
  ADF (A4):
  Colour Approx. 13.4 seconds or less
  Mono Approx. 11.4 seconds or less
  Platen (A4):
  Colour Approx. 14.5 seconds or less
  Mono Approx. 12.3 seconds or less
• Copy Resolution
  Up to 600 x 600 dpi
• Copy Modes
  Text/Photo/Map (Default), Text/Photo/Map (quality), Printed Image, Text
• Double Sided Copying
  1-sided to 2-sided (Automatic)
• Multiple Copies
  Up to 999 copies
• Reduction / Enlargement
  25-400% in 1% increments
• Other Features
  Frame Erase, Collate, 2 on 1, 4 on 1, ID card copy

Scan Specifications

• Standard Type
  Colour
• Scan Resolution
  Optical: Up to 600 x 600 dpi
  Enhanced: Up to 9600 x 9600 dpi
• Scan Speed
  Mono: 27ipm (300x600dpi)
  Colour: 14ipm (300x600dpi)
• Colour Scanning Depth
  24 bit/24 bit (input/output)
• Greyscales
  256 levels
• Compatibility
  TWAIN, WIA, ICA
• Maximum Scan Width
  216mm
• Scan to E-mail
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF
• Scan to PC
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF
• Scan to USB Memory Key
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF
• Scan to FTP
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF
• Scan to Cloud
  TIFF/JPEG/PDF/PNG

Media Handling

• Scanner Type
  Platen, ADF
• Paper Input (Standard)
  250-sheet cassette
  1-sheet manual feed slot
  50-sheet ADF
• Maximum Paper Input Capacity
  251 sheets
• Paper Output
  100-sheet
• Media Types
  Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope
• Media Sizes
  Cassette:
  A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 76.2 x 127 mm Max. 216 x 355.6 mm.

  Multi-purpose tray:
  A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.2 x 127 mm Max. 216 x 355.6 mm.

  ADF:
  A4, A5, B5, Legal, Letter, Statement, Custom sizes: Min. 128 x 139.7 mm Max 215.9 x 355.6 mm
• Media Weights
  Cassette: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
  Multi-purpose tray: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
  ADF: 50 to 105 g/m²
• Double Sided Printing
  Automatic
  Cassette:
  A4, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K
  Custom size - Min. 182 x 257 mm Max. 216 x 355.6 mm
  60 to 200 g/m²

Interface & Software

• Interface Type
  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022
  Mac OS X version 10.11 & up
  Linux
• Network Protocol
  Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
  Scan:
  Push Scan: File: FTP (TCP/IP), SMB3.0 (TCP/IP)
  E-mail/I-Fax: SMTP (send), POP3 (receive)
  Pull Scan: TCP/IP

  Management:
  SNMPv1, SNMPv3 (IPv4,IPv6)

  Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless):
  Infrastructure Mode:
  WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
  Access Point Mode:
  WPA2-PSK (AES)
• Software and Printer Management
  MF Scan Utility,
  Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
  Application Library

General Features

• Recommended Monthly Print Volume
  250 - 2,500 pages per month
• Duty Cycle
  Max. 30,000 pages per month
• Processor Speed
  800MHz x 2
• Memory
  1GB
• Control Panel
  12.7 cm LCD Colour Touch Screen
• Dimensions with Trays (W x D x H)
  451 mm x 460 mm x 360 mm
• Installation Space (W x D x H)
  783 mm x 1,211 mm 789 mm
• Weight
  Approx. 22.6 Kg
• Operating Environment
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity: 20 to 80% RH (no condensation)
• Power Source
  220-240V (±10%) 50/60Hz (±2Hz)
• Power Consumption
  Maximum: Approx. 850 W
  Active printing: Approx. 370W
  Standby: Approx. 11.0 W
  Sleep mode: Approx. 0.8 W
  Typical Electricity Consumption (TEC): 0.19 kWh/week
• Noise Levels
  Sound Pressure:
  Active: Simplex 51 dB / Duplex 50 dB
  Standby: Inaudible

  Sound Power:
  Active: Simplex 65dB or less / Duplex 67 dB or less
  Standby: Inaudible

Consumables

• Cartridges
  Cartridge 067 Black (1,350 pages )
  Cartridge 067H Black (3,130 pages )
  Cartridge 067 Cyan (1,250 pages )
  Cartridge 067H Cyan (2,350 pages )
  Cartridge 067 Magenta (1,250 pages )
  Cartridge 067H Magenta (2,350 pages )
  Cartridge 067 Yellow (1,250 pages )
  Cartridge 067H Yellow (2,350 pages )
