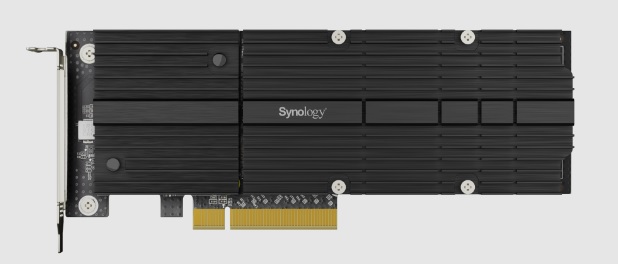

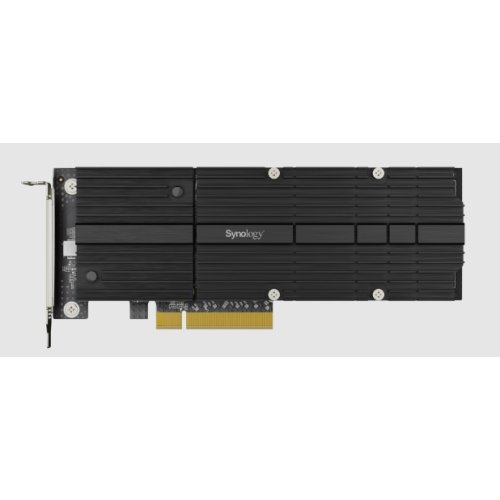

- Synology M2D20 is a M.2 NVMe SSD adapter card designed to supercharge your NAS I/O performance. - The multi-queue capability of NVMe SSD greatly benefits latency-sensitive applications such as photo indexing, file search, and virtualization deployments.
Hardware Specifications
General
Host Bus Interface:
- PCIe 3.0 x8
Bracket Height:
- Low Profile and Full Height
Size (Height x Width x Depth):
- 71.75 mm x 181.9 mm x 15.8 mm
Operating Temperature:
- 0°C to 40°C (32°F to 104°F)
Storage Temperature:
- -20°C to 60°C (-5°F to 140°F)
Relative Humidity:
-5% to 95% RH
Warranty:
-5 Years
Notes:
- The warranty period starts from the purchase date as stated on your purchase receipt.
Storage
Storage Interface:
- PCIe NVMe
Supported Form Factor
- 22110 / 2280
Connector Type and Quantity:
- M-key, 2 Slots
Compatibility
Applied Models
NVMe SSD:
- SA series:SA6400, SA3610, SA3600, SA3410, SA3400
- 23 series:RS2423RP+, RS2423+
- 22 series:RS822RP+, RS822+, DS3622xs+, DS2422+
- 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+
- 20 series:RS820RP+, RS820+
- 19 series:DS2419+II, DS2419+, DS1819+
- 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+
- 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs
Notes:
- DSM version requirement: 6.2.3-25426 or later version
- DSM version requirement for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs and DS3617xsII: 7.0.1 or later version
