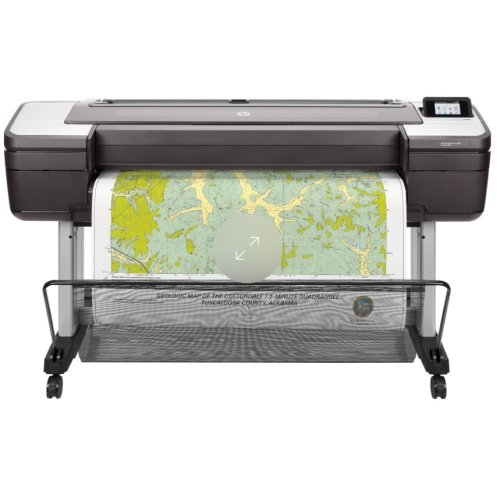

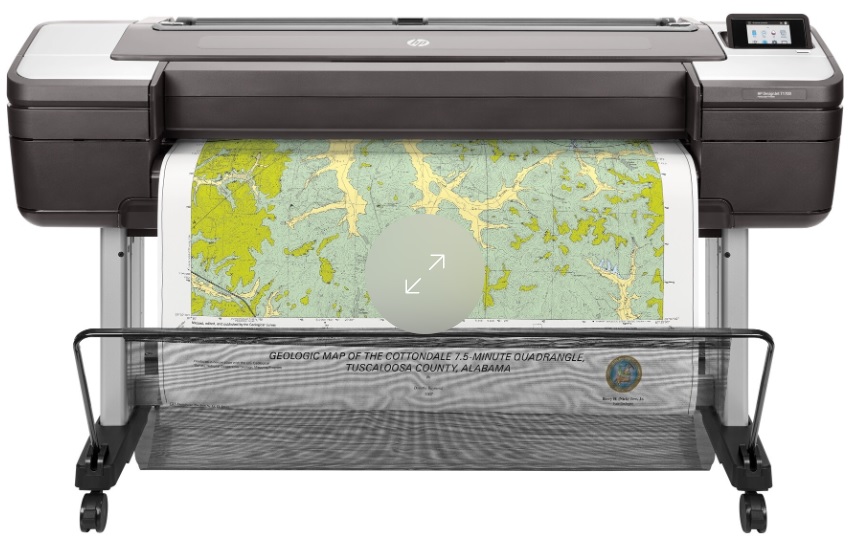

W6B55A - HP DesignJet T1700 Printer Plotter

SPECIFICATIONS

MEMORY

Memory:

128 GB (virtual)

Memory Note:

Based on 4 GB DDR3 RAM

Maximum Memory:

128 GB (virtual)

BOX CONTENTS

What's in the box:

HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindle, setup poster, introductory information, warranty, power cords, label kits

CONNECTIVITY AND COMMUNICATIONS

Mobile printing capability:

Direct print for mobile apps for iOS, Android and Chrome OS
E-mail printing with HP ePrint and HP Smart app for iOS and Android

Connectivity, optional

HP USB 3.0 to Gigabit LAN Adapter

Network ready

Standard

Connectivity, standard

Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab)
USB Type-A host port

HP ePrint capability

Yes

Security features

HP Secure Boot, Whitelisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible,
HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, PIN printing

WEIGHTS

Weight

88.9 kg

Package weight

126 kg

DIMENSIONS

Minimum dimensions (W x D x H)

1802 x 695 x 998 mm

Package dimensions (W x D x H)

1955 x 770 x 710 mm

BATTERY AND POWER

Power

Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max

Power consumption

< 100 W (printing)
< 24 W (ready)
< 0.3 W (< 6.5 W with embedded Digital Front End) (sleep)
0.1 W (off)

SOFTWARE AND APPLICATIONS

Software included

HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS

WARRANTY

Manufacturer Warranty

Two-year limited hardware warranty

CARTRIDGES AND PRINTHEADS

Ink types

Dye-based (C, M, Y, PK, G)
pigment-based (MK)

Number of print cartridges

6 (cyan, magenta, yellow, photo black, matte black, grey)

Color(s) of printing supplies

Cyan, magenta, yellow, photo black, matte black, grey

Ink drop

6 pl

Print cartridge volume delivered

Cyan, magenta, yellow, photo black, matte black, grey (300 ml)
Cyan, magenta, yellow, photo black, matte black, grey (130 ml)

Print head nozzles

2112 each colour

Print heads

3 universal printheads, 2 colours each

PRINTER SPECIFICATIONS

Functions

Print

Internal Storage

500 GB self-encrypting

Print technology

HP Thermal Inkjet

Print languages

HP-GL/2, TIFF, JPEG, URF, CALS G4

Printer drivers included

Raster drivers for Windows and macOS
PostScript and PDF Windows drivers and macOS PostScript driver with optional PostScript/PDF Upgrade Kit

Optional printer languages

Adobe PostScript 3
Adobe PDF 1.7 ext 3

Printing path

Direct printing from USB flash drive, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint for MacOS and for iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android

Line accuracy

±0.1%[2]

Theoretical minimum line width

0.02 mm (PDF addressable @ 1200 dpi)

Model size

1118 mm

PRINT SPEED

Print speed

116 A1/hr, 26 sec/A1[1]

PRINTING MEDIA HANDLING

Finished output handling

Sheet feed, roll feed, automatic horizontal cutter

PRINT AREA

Non-printable area (cut-sheet)

3 x 17 x 3 x 3 mm

Non-printable area (roll media)

3 x 3 x 3 x 3 mm

PRINT RESOLUTION

Print quality color (best)

Up to 2400 x 1200 optimised dpi

Maximum optical density (black)

2.15 maximum black optical density (6 L*min)

SUPPORTED PRINTING MEDIA

Media sizes supported

A4, A3, A2, A1, A0

Media sizes, custom

210 x 279 to 1118 x 1676 mm

Media types

Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl)

Media weight, recommended

60 to 328 g/m²

Media width, maximum

1118 mm

Media thickness (metric)

Up to 0.8 mm

PRINTING MEDIA

Media sizes standard (metric rolls)

279 to 1118-mm

Roll external diameter

135 mm

Roll maximum input

1

Roll maximum weight

11.9 kg

Media thickness

Up to 31.5 mil

Supported Primary Applications

Line drawings
Maps
Orthophotos
Presentations
Renderings

Recommended media

C6810A HP Bright White Inkjet Paper (FSC® certified) 914 mm x 91.4 m (36 in x 300 ft)
C6569C HP Heavyweight Coated Paper 1067 mm x 30.5 m (42 in x 100 ft)
Q6581A HP Universal Instant-dry Satin Photo Paper (FSC® certified) 1067 mm x 30.5 m (42 in x 100 ft)
Q1406B HP Universal Coated Paper (FSC® certified) 1067 mm x 45.7 m (42 in x 150 ft)

PRODUCT DESCRIPTION

Product disclaimer

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges.

KEY DIFFERENTIATORS

Plus

1 TB encrypted HDD, PostScript® option, HP Click software, HP Secure Boot, Adobe PDF driver
