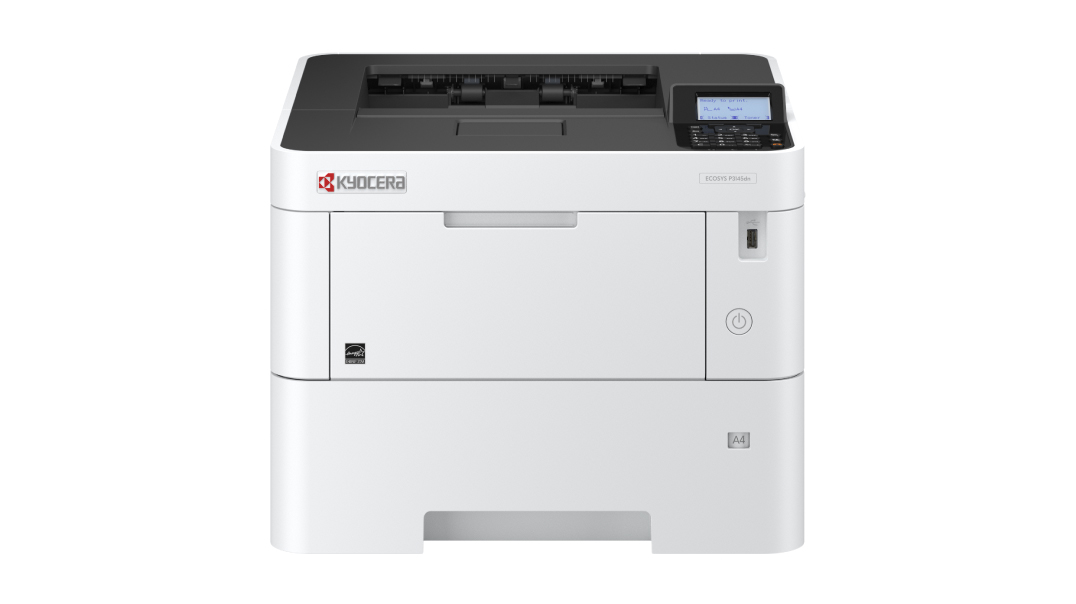

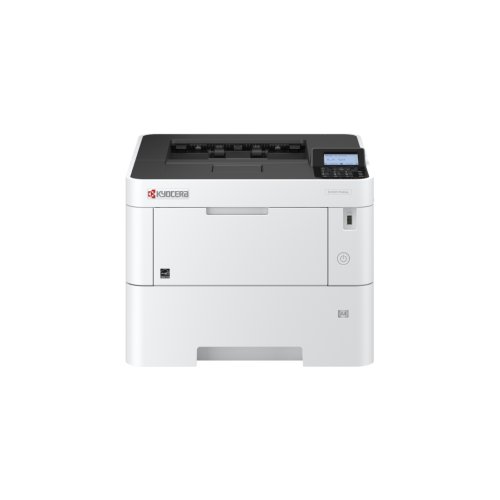

1102TT3NL0 - Kyocera P3145dn Laser Printer

Main Specifications

Model:

ECOSYS P3145dn

Type:

Desktop

Writing Method:

Laser exposure dry election

Print Speed (A4) (Mono):

45ppm

First Print Out Time:

5.3seconds or less

Warm Up Time:

16seconds or less

Resolution:

600dpi x 600 dpi, Fast 1200, Fine 1200

Control Panel:

LCD 21 characters x 5 lines with white LED back light

Power Consumption(Standard configuration):

Print Mode - 594W

Stand-by Mode - 10W

Sleep Mode - 0.5W

Noise(ISO7779/ ISO9296):

Print Mode - 54dB(A);

Silent mode - 50dB(A)

Stand-by Mode - 30dB(A)

Dimension (W x D x H) (Main Unit):

390 x 416 x 308mm

Weight (Main Unit):

Approx. 14.1 kg

Controller

CPU:

Cortex-A9 1.2 GHz

Memory:

Standard 512MB (Max. 2.5GB)

Data Security:

Data Security Kit (E) (Available when HD-6/7 is installed)

Interface:

USB 2.0 High Speed x1; Ethernet 10BASE-T/100BASE-TX/1000BASE-T (TCP/IP. NetBEUI); USB Host x2; e-KUIO x1; Wireless LAN (optional)

PDL:

PCL6 (PCL5e, PCL-XL), KPDL3 (Postscript 3 compatible), PRESCRIBE, IBM Proprinter, Epson LQ-850, PDF Direct Print Ver. 1.7, XPS, Open XPS

Supported Protocol:

TCP/IP, FTP, LPR, Port9100, IPP, IPP over SSL, NetBEUI, WSD Print, Apple Bonjour, IPsec, SNMPv3, IEEE802.1x, IPP over SSL/TLS, HTTP over SSL/TLS,FTP over SSL/TLS, SMTP over SSL/TLS, POP3 over SSL/TLS, Enhanced WSD over SSL/TLS

Operating System Supported:

Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10; Apple Macintosh OS X 10.5 or later; Linux

USB Memory Printing:

Standard

USB Memory Printing Format:

TIFF, JPEG, PDF, XPS, Open XPS

Mobile Printing:

AirPrint, Mopria, KYOCERA Mobile Print

Paper Handling

Paper Capacity:

Standard - 500 sheets x1 (Cassette) + 100 sheets (MPT)

Maximum - 2,600 sheets (Main Unit + PF-3110 x4 + MPT)

Paper Size:

Cassette - Min. A6R - Max. A4R (Legal)

Option - Min. A5R - Max. A4R (Legal)

MPT - Max. 216mm x 356mm - Min. 70mm x 140mm, banner paper: up to 915mm

Paper Weight:

Cassette - 60 - 120 g/m²

Option - 60 - 120 g/m2

MPT - 60 - 220 g/m2

Duplex Printing:

Paper size: A4/Legal - A5R; Paper weight: 60 - 120 g/m²

Output Capacity:

250 sheets face-down
